6 Technical Data

Specifications

Timing range	23 hours, 59 minutes, 59.999 seconds
Accuracy	+/- 0.0002 sec/h at 20°C (68 K) +/- 0.009 sec/h at -15 to 50 °C (5 to 122 K)
Precision	1/10,000 seconds
Quartz frequency	TCXO 32.754 kHz (temperature compensated crystal oscillator)
Operative temperature range	-25 to 60°C (-13 to 140 F)
Memory
Battery	Lithium-Ion Battery 7,2 VDC, 6.7 Ah
Ext. Power Supply	AC-Power: 85 – 264 VAC
DC-Power	12 – 28 VDC
Case	ABS-Case
Measurements	260 x 220 x 65 mm / 10.2 x 8.7 x 2.5 in
Weight	about 1.2 kg / 2.6 lbs

Display

Screen size	5” diagonal
Display format	480 x 854 dots
Colors	full colour display
LCD-Type	LCD / IPS transmissive, normally black
Viewing direction	full view
Backlight type	LED

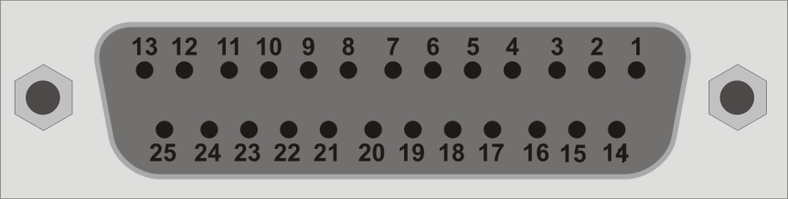

Multiport

PC	2400 Baud, 1 start bit, 8 data bit, 1 stop bit, no parity bit
Printer	2400 Baud, 1 start bit, 8 data bit, 1 stop bit, no parity bit

1. empty
2. Channel 0 (Start) and GPS sync.
3. Remote Control Up
4. Remote Control Down
5. empty
6. empty
7. empty
8. empty
9. empty
10. RS232 – TX
11. RS232 - RX
12. Ground
13. +5 VDC
14. Remote Control Countdown/Brightness/Countdown Start
15. Yellow Push Button (2)
16. empty
17. empty
18. Green Push Button (1)
19. empty
20. RS232 – TX - Printer
21. empty
22. empty
23. +12 VDC
24. Ground
25. empty
